Description

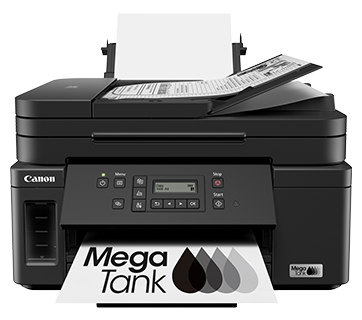

CANON PIXMA GM4070
Refillable Ink Tank Wireless Printer with ADF for High Volume Monochrome Printing
Designed for high volume monochrome printing at low running cost. This printer also has the option for colour document printing.Print, Scan, Copy
ISO standard print speed (A4):13.0 images per minute black
Hi-speed USB 2.0, WiFi, wired LAN, wireless/wired LAN Pictbridge, Direct Wireless
Recommended print volume: 150 to 1 500 pages
| Print Head / Ink | |
| Type | Permanent (Replaceable) |
| Number of Nozzles | Black: 640 nozzles (Optional Colour: 1 152 nozzles) |
| Ink Cartridges | GI-70 (Pigment Black) |
| Optional: CL-741, CL741XL | |
| Printing Resolution | 600 (horizontal) x 1 200 (vertical) dpi |
| Print Speed | |
| Based on ISO/IEC 24734 | |
| Document (ESAT/Simplex) | 13.0 images per minute (black) / 8.8 ipm (colour) |
| Photo (10.16 x 15.24cm) (PP-201/Borderless) | |
| Printable Width | 203.2 mm (20.32cm), Borderless: 216 mm (21.59cm) |
| Printable Area | |
| Bordered Printing | #10 Envelope/DL Envelope: |
| Top 8mm / Bottom 12.7mm / Right 5.6mm / Left 5.6mm | |
| l / LGL: | |
| Top 3 mm / Bottom 5 mm / Right 6.3 mm / Left 6.4 mm | |
| Others: | |
| Top 3mm / Bottom 5mm / Right 3.4mm / Left 3.4mm | |
| Bordered Auto 2-Sided Printing | Top / Bottom margin: 5mm |
| Left / Right margin: 3.4mm (l: Left: 6.4mm, Right: 6.3mm) | |
| Support Media | |
| Rear Tray | Plain Paper (64 - 105 g/m² (gsm)) |
| High Resolution Paper (HR-101N) | |
| Envelope | |
| Cassette | Plain Paper (64 - 105 g/m² (gsm)) |
| Paper Size | |
| Rear Tray | A4, A5, B5,l, LGL, Envelopes (DL, COM10), Card Size (91 x 55mm) |
| [Custom size] | |
| width 55 - 215.9mm, length 89 - 676mm | |
| Cassette | A4, A5, B5,l |
| [Custom size] | |
| width 148.0 - 215.9mm, length 210 - 297mm | |
| Paper Handling (Number) | |
| Rear Tray | Plain Paper (A4, 64 g/m² (gsm)) = 100 |
| High Resolution Paper (HR-101N) = 80 | |
| Cassette | Plain Paper (A4, 64 g/m² (gsm)) = 250 |
| Support Media for Auto 2-sided printing | |
| Type | Plain Paper |
| Size | A4, A5, B5, l |
| Paper Weight | |
| Rear Tray | Plain Paper: 64 - 105 g/m² (gsm) |
| Cassette | Plain Paper: 64 - 105 g/m² (gsm) |
| Ink End Sensor | Electrode type and dot count type combined |
| Optional Colour Cartridge; Dot count | |
| Print Head Alignment | Auto/Manual |
| Scan | |
| Scanner Type | Flatbed |
| Scanner Method | CIS (Contact Image Sensor) |
| Optical Resolution | |
| Optical resolution scan is available, only when you use TWAIN Driver. | 1 200 x 2 400 dpi |
| Scanning Bit Depth (Input/Output) | |
| Grayscale | 16 bit/8 bit |
| Colour | RGB each 16 bit/8 bit |
| Line Scanning Speed | |
| Grayscale | 1.5 ms/line (300 dpi) |
| Colour | 3.5 ms/line (300 dpi) |
| Document Size | |
| Flatbed | A4/l (216 x 297mm) |
| ADF | A4/l/LGL |
| Copy | |
| Document Size | A4/l |
| Compatible Media | |
| Size | A4/A5/B5/l/LGL/Card Size (91 x 55mm) |
| Type | Plain Paper |
| Image Quality | 3 positions (Economy, Standard, High) |
| Density Adjustment | 9 positions, Auto intensity (AE copy) |
| Copy Speed | |
| Based on ISO/IEC 24734 | |
| Document (B&W) (sFCOT/Simplex) / (sESAT/Simplex) | 12s / 10.7 images per minute |
| Document (ADF): Black ESAT/Simplex | 11.5 images per minute |
| Network | |
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| Wired LAN | |
| Network Type | IEEE802.3u (100BASE-TX) |
| IEEE802.3 (10BASE-T) | |
| Data Rate | 10M/100Mbps (Auto switchable) |
| Wireless LAN | |
| Network Type | IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Frequency Band | 2.4 GHz |
| Channel | 01-01-2013 |
| Security | WEP64/128 bit |
| WPA-PSK (TKIP/AES) | |
| WPA2-PSK (TKIP/AES) | |
| Direct Connection (Wireless LAN) | Available |
| Printing Solutions | |
| Canon Print Service | |
| (for Android) | Available |
| PIXMA Cloud Link | |
| (from smartphone/tablet) | Available |
| Canon PRINT | Available |
| System Requirements | Windows 10 / 8.1 / 7 SP1 |
| (operation can only be guaranteed on a PC with a pre-installed Windows 7) | |
| Mac: N/A | |
| General Specifications | |
| Operation Panel | |
| Display | 5.08 cm LCD |
| Language | 32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
| ADF | |
| Paper Handling (Plain Paper) | A4, l = 35, LGL = 5, others = 1 |
| Interface | Hi-Speed USB 2.0 |
| PictBridge (Wireless LAN / LAN) | Available |
| Operating Environment | |
| Temperature | 5 - 35°C |
| Humidity | 10 - 90% RH (no dew condensation) |
| Recommended Environment | |
| Temperature | 15 - 30°C |
| Humidity | 10 - 80% RH (no dew condensation) |
| Storage Environment | |
| Temperature | 0 - 40°C |
| Humidity | 5 - 95% RH (no dew condensation) |
| Quiet Mode | Available |
| Acoustic Noise (PC Print) | |
| Plain Paper (A4, B/W) | 50.5dB |
| Power | AC 100-240 V, 50/60 Hz |
| Power Consumption | |
| OFF | 0.3 W |
| Standby (scanning lamp is off) | 0.8 W |
| USB connection to PC | |
| Standby (all ports connected, scanning lamp is off) | 1.7 W |
| [EU only - for ErP Lot 26 regulation] | |
| Time to enter Standby mode [EU only - for ErP Lot 26 regulation] | 11m 9s |
| Printing | |
| USB connection to PC | 10 W |
| Environment | |
| Regulation | RoHS (EU, China), WEEE (EU) |
| Duty Cycle | 15 000 pages/month |
| Dimension (WxDxH) | |
| Factory Configuration | 403 x 369 x 234mm |
| Output/ADF trays extended | 403 x 701 x 305mm |
| Weight | 9.2kg |
| Page Yield | |
| Plain Paper (A4 pages) | Standard: |
| (ISO/IEC 24712 test file) | GI-70 PGBK: 6 000 |
| Economy: | |
| GI-70 PGBK: 8 300 | |
| Optional: | |
| CL-741: 180 | |
| CL-741XL:400 | |
