Description

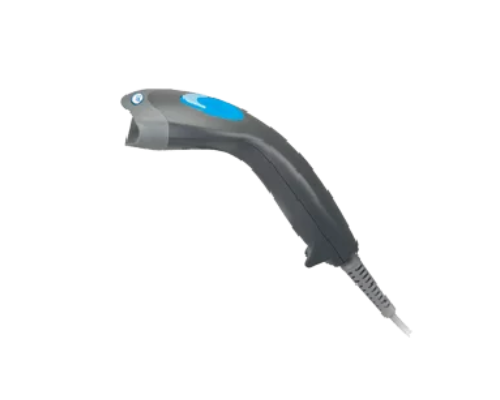

TVS BS-C101 STAR
| FEATURES | AIM & SHOOT TRIGGER PROVIDING OPERATIONAL COST |
| DURABLE AND STRONG DESIGN | |
| ENABLED WITH ULTRA SCAN-DECODING TECHNOLOGY | |
| EXPRESS SPEED AT 330 SCANS PER SECOND | |
| PLUG AND PLAY – EASY TO INSTALL | |
| SPECIFICATIONS | |
| Light Source | 650 nm visible laser diode VLD |
| MPU | 32 bit |
| Depth of Field | 35 200 mm UPC/EAN 100%, PCS=90% |
| Scan Rate | 330 scans per second |
| Scan Angle | 52° |
| Pitch / Roll / Skew angle | 65° / 30° / 65° |
| Minimum Bar Width | 4 mil @ PCS=90% Code 39 |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicators LED | Three colour LED green, red & blue |
| Beeper Option | Programmable tone & beep time |
| System Interfaces | Keyboard, RS232C, HID USB, wand |
| Physical Dimensions | L106.7 x D58.0 x H155.0 mm device only |
| Weight | 148 g stand excluded |
| Cable | Standard 2.0M straight |
| Input Voltage | 5 VDC ±10% |
| Power Consumption | 1.0 watts |
| Operating Current | 200 mA |
| Laser Class | CDRH Class Iia: IEC 608251: Class 1 |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Operating Temperature | 0°C – 40°C, 32°F – 104°F |
| Storage Temperature | 20°C – 60°C, 4°F – 140°F |
| Operating Humidity | 5% – 95% RH noncondensing |
| Light Levels | 4,500 Lux fluorescence |
| Drop Durability | Designed to withstand 1.0 M drops |
| Barcode | Most popular 1D barcodes, incl. GS1 DataBar & PDF 417 |
