Description

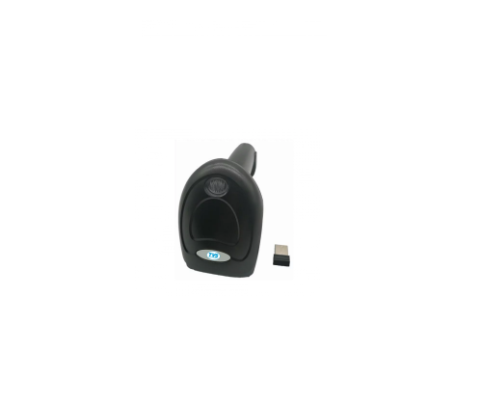

TVS BS-i203G+BT
| FEATURES | 2D Laser scanner with sharp aim and shoot reading |
| Built-in 512K memory can store more than 10000 barcodes | |
| 2.4Ghz bluetooth wireless technology | |
| Battery capacity of 2500 mAh | |
| SPECIFICATIONS | |
| Scan mode | Automatic / Manual |
| Alarm mode | LED light alarm, Buzzer alarm |
| Light Source | (Aimer) Red color LED; (Illumination) White color LED |
| Image (Pixels) | 1280 pixels (H) x 800 pixels (V),1 Million Pixels |
| Scan angle | 28°(Horizontal),20°(Vertical) |
| Roll / Pitch / Yaw | 360°(Roll), ±65°(Skew) , ±65°(Pitch) |
| Scan depth of field | Code39(5mil): 40mm-210mm |
| Code39(13mil): 60mm-380mm | |
| QR(20mil): 25mm-260mm | |
| EAN-13(5mil): 55mm-170mm | |
| Barcode type | 1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 2D: PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post,Japan Post,MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.DataBarOmnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2of 5)、Korea Post. |
| Voltage | +4.2V±10% VDC |
| Battery capacity | 2500mAh |
| Current Starting | Current:204mA |
| Stand-by Current:96mA | Work Current:226mA |
| Interfaces | 2.4G, Bluetooth |
| Print Contrast | 20% minimum reflective difference |
| Ambient Light Immunity | 0-100,000 Lux |
| Operating temperature | -20°C ~ 60°C |
| Storage temperature | -30°C ~ 70°C |
| Humidity | 5% to 95% relative humidity,non-condensing |
| Drop | Designed to withstand 1.5m(5’) drops |
| Dimensions (LxWxH) | 159.99mm x 69.38mmx 107.61mm |
| Weight | 188.5g |
| Color | black |
| Material | ABS + EVA |
